Basic parameters

• Length * Width * Height (mm)

  8940*2420*3295

• Wheelbase (mm)

  4850

• Tire

  265/70R19.5

• Max speed

  80

• Max number of seats

  23+1

• Max passenger capacity

  60

• Max luggage compartment capacity (m³)

  0

• Max manufacturer's total mass (kg)

  14400

• Front axle/dual rear axles(kg)

  5000/9400

• Floor type

  Low entry

New energy power system

• Battery (kWh)

  255.02

• Rated power (kW)

  120

• Max gradeability 1

  14% (20km/h, 20s)

• Max gradeability 2

  16% (20km/h, 20s)

• Single plug

  ●

• Dual-plug

  ○

• Charging power (150kw)

  ●

• Emergency Assist for Pedal Misapplication (EAPM)

  ●

Seat

• Passenger seat

  ●CS001 cushioned seat

• Wheelchair area

  ●

• Yutong standard driver seat

  ●

Interior

• Driver enclosure

  ●

• Wheelchair ramp

  ●

Exterior

• Passenger door

  2

• Insulated side window glass

  ●

• Manual driver window

  ●

• Ordinary front windshield glass

  ●

A/C

• Heating and cooling

  ●

• Single-cooling defroster

  ●

Chassis

• Front axle

  Molead

• Drive axle

  ● Molead
  ○ Dongfeng

• Air suspension

  ●

• ECAS

  ●

• Steering wheel

  LHD

• EPB

  ●

Safety and driving assistance system

• Electronic Braking System (EBS)

  ●

• Electronic Stability Control (ESC) System

  ●

• Lane Departure Warning (LDW) System

  ●

• Tire Pressure Monitoring System (TPMS)

  ●

• Reversing radar

  ●

Audio-visual entertainment and lighting

• Play system

  Mp3 player + 8 speakers

• On-board Wi-Fi

  Reserved Wi-Fi harness

• Headlamp, LED

  ●

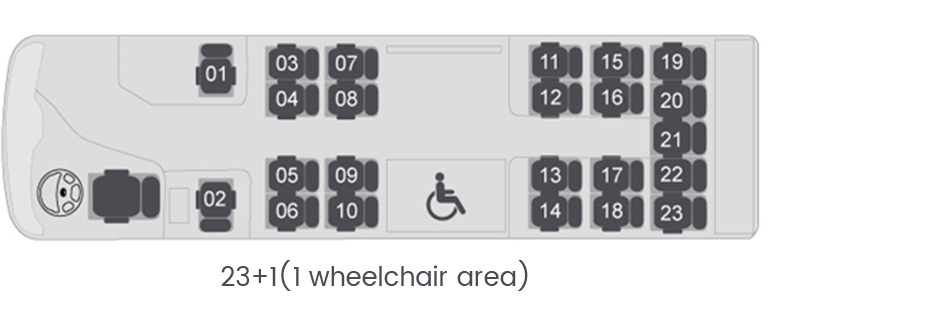

Seat Maps
