Basic parameters

• Length*Width*Height(mm)

  11970*2550*3635

• Wheelbase (mm)

  6050

• Tire

  295/80R22.5

• Max speed

  100

• Max number of seats

  49+1

• Max passenger capacity

  50

• Max luggage compartment capacity (m³)

  5

• Max manufacturer's total mass (kg)

  18000

• Front/rear axle (kg)

  6500/11500

• Floor type

  Concave floor

New energy power system

• Battery (kWh)

  352.08

• Rated power (kW)

  215

• Dual-plug

  ●

• Emergency Assist for Pedal Misapplication (EAPM)

  ●

• Intelligent power control

  ●

• Max gradeability

  15% (20km/h, 20s)

Seat

• Passenger seat

  YTF032 F05, adjustable backrest, transversely movable

• Three-point seat belt (passenger seat)

  ●

• Three-point full-air suspended driver seat (with seat belt warning function)

  ●

Interior

• Curtain

  ●

• Driver enclosure

  ●

• Luggage rack

  Integral inner luggage rack

• Roof hatch

  2 roof hatches with ventilators

Exterior

• Passenger door

  2

• Single-layer side window

  ●

• Insulated side window glass

  ○

• Manual driver window

  ●

• Ordinary front windshield glass

  ●

• Luggage compartment tilt-up door

  ●

• Luggage compartment upward sliding door

  ○

A/C

• Heating and cooling

  ●

• Heating system

  ○

• Cooling/heating defroster

  ●

Chassis

• Front axle

  Molead

• Drive axle

  TZ400XSYTB49

• Air suspension

  ●

• ECAS

  ○

• Steering wheel

  LHD

• EPB

  ●

Safety and driving assistance system

• Electronic Braking System (EBS)

  ●

• Electronic Stability Control (ESC) System

  ●

• Lane Departure Warning (LDW) System

  ○

• Intelligent Speed Assist (ISA)

  ●

• Tire Pressure Monitoring System (TPMS)

  ●

• 360° panoramic view system

  ○

• Reversing radar

  ●

• Intelligent control wiper and headlamp

  ●

Audio-visual entertainment and lighting

• Microphone

  1 wired mic

• Headlamp, LED

  ●

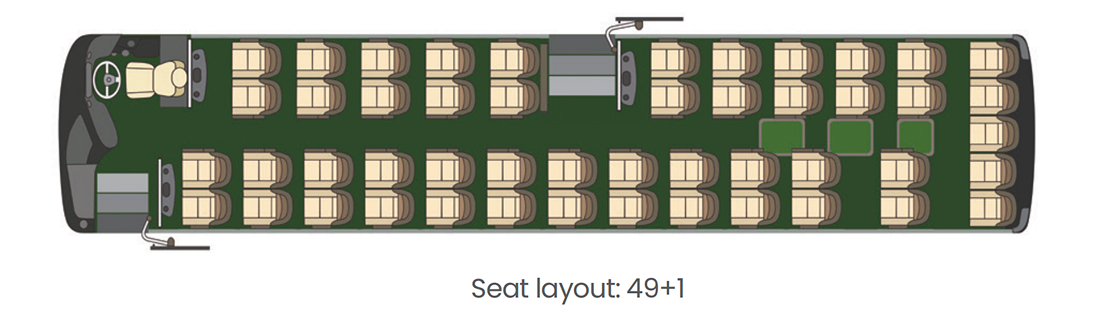

Seat Maps
